Vertex

Vertex Tri Tier Floating Pond Fountain

Vertex Tri Tier Floating Pond Fountain

$10,000.00 USD
$10,000.00 USD
Sale Sold out
Shipping calculated at checkout.

Elevate Your Pond with the Stunning TriTier Floating Fountain

Transform your pond into a breathtaking centerpiece with the TriTier floating fountain. This elegant water feature creates a captivating three-tier spray pattern, resembling beautiful flower-like arcs. Crafted with precision-machined brass nozzles, the TriTier delivers impressive spray heights ranging from 18 to 40 feet, adding dramatic visual appeal to any landscape.

Powered by a robust submersible turbine pump and a UL-certified control panel, this fountain is built for reliable, long-lasting performance. All components are fully waterproof and constructed from premium, corrosion-resistant materials, ensuring years of dependable operation and stunning water displays.

Key Features & Benefits

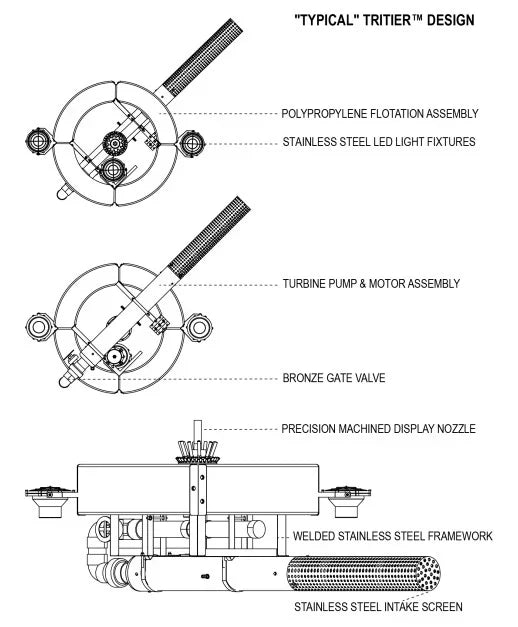

Nozzles

  • Achieve stunning spray patterns with precision-machined brass/bronze or stainless steel nozzles.

Pumps / Motors

  • Experience powerful and efficient water flow with the stainless steel turbine pump/motor assembly.
  • Water-cooled design eliminates the need for oil, seals, or o-rings, simplifying maintenance.
  • Backed by a robust 4-year warranty for peace of mind.

Flotation

  • Durable rotocast polypropylene with UV protection ensures long-term buoyancy and stability.
  • Separate compartments allow for precise leveling, guaranteeing a perfect display.
  • Covered by a 4-year warranty.

Control Panel

  • UL listed and compliant with National Electrical Code standards for safety and reliability.
  • Weather-resistant steel enclosures protect internal components.

Submersible Lighting (Optional)

  • Enhance nighttime beauty with energy-efficient LED lights, providing 140 lumens per watt.
  • Durable stainless steel housing for lasting performance.
  • Includes a 2-year warranty.

Cables

  • High-quality STW-A rated cables for safe and reliable power delivery.
  • Protected by a 4-year warranty.

Specifications

Vertex TriTier Floating Fountain Series Spray Specifications


 2 HP Unit
 3 HP Unit 5 HP Unit 7.5 HP Unit 10 HP Unit 15 HP Unit
Minimum Operating Depth 3' 4' 4'
 5' 6' 7'
Spray Height 1 (A) 18' 23'
 26' 30′ 35′ 40'
Spray Height 2 (B) 8' 10' 12' 15' 17' 20'
Spray Height 3 (C) 4' 5' 6' 7' 8' 10'
Diameter (D) 20′ 25′ 40′ 45' 50′ 55′
LED Lights 2 2 3 4 4 5
Total Wattage 86W 86W 129W 172W 172W 215W
AMP Draw 1 1 1.5 2 2 2.5
Available Phase 1 & 3 1 & 3 1 & 3 1 & 3 1 & 3 1 & 3
1 Phase (Volts) 230 230 230 230 230 230
3 Phase (Volts) 208 or 230 208 or 230 208 or 230 208 or 230 208 or 230 208 or 230
Display Heads Warranty 4-Year
 4-Year 4-Year 4-Year 4-Year 4-Year
Pumps & Motors Warranty 4-Year 4-Year 4-Year 4-Year 4-Year 4-Year
LED Lighting Warranty 2-year 2-year 2-year 2-year 2-year 2-year
Control Panel Warranty 1-Year 1-Year 1-Year 1-Year 1-Year 1-Year
View full details
