Scott Aerator Atriarch Pond Fountain

Elevate Your Landscape with the Scott Aerator Atriarch Floating Fountain

Transform your pond or lake into a stunning focal point with the Scott Aerator Atriarch Floating Fountain. This premium fountain not only adds breathtaking beauty but also enhances the health and value of your water feature. Featuring a unique Atriarch nozzle with eight individual brass nozzles surrounding a central one, you get a captivating, customizable water display built for lasting performance.

Experience the soothing sound of moving water and the visual spectacle of a powerful, elegant spray. The Atriarch is engineered for continuous, year-round operation in all weather conditions, even remaining submerged when not running. Simple to install and requiring zero ongoing maintenance, this fountain is the perfect solution for effortless pond enhancement.

Available in a range of power options to suit any size pond or lake, from 1 HP to 3 HP, the Atriarch delivers impressive spray dimensions and water output. It's even suitable for saltwater environments! Backed by a robust 5-year motor warranty and ARL certified to meet UL and National Electric Code standards, you can invest with confidence. Remember to always use GFCI protection for safety, especially near swimming areas.

Ideal for a wide variety of applications including HOAs, golf courses, recreational water bodies, commercial properties, country clubs, retention ponds, farm ponds, and business parks.

Product Specifications & Performance

• Premium floating fountain designed for ponds and lakes.
• Built for continuous, all-weather operation, can remain in water year-round.

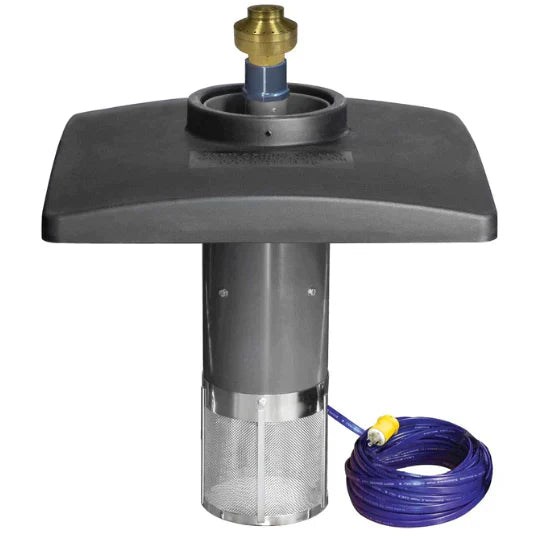

• Complete kit includes fountain pump, Atriarch nozzle, float, intake screen, and power cable.
• Enhance your fountain with optional lighting kits, different nozzle patterns, and timers.
• Engineered for reliable, year-round performance.
• Effortless setup and zero maintenance required.
• Choose from 1 HP, 1.5 HP, 2 HP, and 3 HP power options.
• Suitable for saltwater applications.
• Backed by a 5-year motor warranty.
• ARL certified (UL and National Electric Code standards).
• GFCI protection is essential for safety, especially near swimming areas.
• Perfect for HOAs, golf courses, recreational areas, commercial sites, country clubs, retention ponds, farm ponds, business parks, and more!

Optional LED Lighting Kits

Add a magical glow to your fountain with our easy-to-install LED lighting kits. Available in Warm White or vibrant 14-Color options, these kits attach directly to the float and can be purchased with your fountain or added later.

• Light kits easily attach to the float.
• Available for purchase with fountain or separately.
• Recommended: 2-light sets for fountains up to 1.5 HP, 4-light sets for 2 HP and 3 HP fountains.

Optional Fountain Timers

Automate your fountain's operation with our reliable timers. Designed specifically to control the fountain pump (not the lights), these timers offer convenience and energy savings. Available for purchase with your fountain or as a later addition.

• Timers control the fountain pump (lights require a separate timer/control unit).
• Available for purchase with fountain or separately.
• Residential 230V timers have plastic cases, commercial 230V timers have metal cases (functionality is the same).

The Scott Aerator Atriarch fountain is a recent addition to our lineup, designed to significantly enhance the aesthetic and acoustic appeal of any outdoor space. Its durable construction and flexible design, including a standard 100-foot, 12-gauge submersible power cord (longer lengths available), make it a versatile choice for various applications.

Key Benefits:

• Zero Maintenance: Enjoy the beauty without the hassle.
• High Performance: Powerful water flow for a dramatic display.
• Durable Construction: Built to last in any environment.

Detailed Specifications

Minimum Water Depth Requirements

Ensure optimal performance and longevity by operating your Atriarch fountain in the recommended minimum water depth.

Electrical Data

Understand the power requirements for each Atriarch model to ensure proper electrical setup.

Power Cord Options

Select the appropriate power cord length for your installation needs. Longer lengths are available to accommodate various pond sizes and power source locations.

Easy Installation Guide

1. Fountain Unit Assembly

Assembling your Scott Aerator Atriarch fountain is quick and easy, typically taking only 15-20 minutes. Follow these simple steps:

Your kit includes:

• Pump with cylindrical housing and attached power cord
• Durable square float platform
• Protective stainless steel filter
• Decorative Atriarch nozzle
• 5/16"x2" stainless steel bolts
• Stainless steel nuts & washers
• Self-tapping stainless steel screws

Tools Required: A wrench (or socket driver) and pliers.

Assembly Steps:

1. Place the fountain housing on a stable surface with the pump discharge facing upwards.
2. Attach nylon rope (not included) to the two stainless steel eyebolts on the housing for anchoring.
3. Align the float over the housing and secure it using the provided two 5/16" x 2" bolts, washers, and nuts.
4. Carefully flip the fountain over, remove the protective Styrofoam, and position the stainless steel filter over the pump intake. Ensure the filter's pre-drilled holes align with the marks on the housing. Secure the filter with the three self-tapping screws.

2. Optional Light Kit Installation

If you've purchased a light kit, follow these steps to easily attach it to your fountain float:

Tools Required: Wrench & Pliers.

*Important Note: The included timer/control unit is essential for light operation. Do NOT detach the cord from the control unit, as this will void the light warranty.

Installation Steps:

1. Attach each arm assembly to the fountain float, ensuring the "L" bracket is facing upwards. Remove one of the 2" bolts securing the float to the fountain and align the holes with the stainless steel arm. Reinsert the bolt with washer through the housing, float, and arm. Secure with a washer and nut. Repeat for all arm assemblies.
2. Attach each light fixture to the slotted end of the stainless steel arms. Insert a 1/2" x 1/4" bolt downwards through each light bracket and arm, then secure with a 1/4" nut. Lights can be easily adjusted by loosening the nut, sliding the light to the desired position, and re-tightening.
3. Connect the lights to the Timer Control Unit by aligning the pins and screwing the connector together only a half turn. Avoid overtightening to prevent damage to the O-ring or wiring.

3. Fountain Deployment

Once assembled, carefully place your Atriarch fountain in the water for final positioning and anchoring:

• Handle the fountain with care, avoiding resting its weight on the stainless steel filter.
• Once the fountain head is submerged, attach the Atriarch nozzle by screwing it into place.
• Float the fountain to your desired location in the pond or lake.

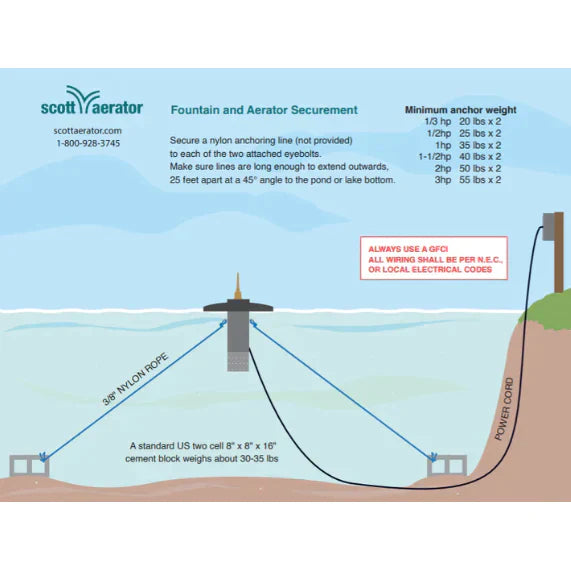

• Secure the attached nylon ropes to the shore or use two submerged concrete blocks placed at least 20 feet apart for stable anchoring.
• The final step is connecting the fountain and lights (if applicable) to your power source. ALWAYS use a ground fault circuit interrupter (GFCI) for safety. Consult a licensed electrician for professional installation.

Selection Guide

Choosing the Right Horsepower

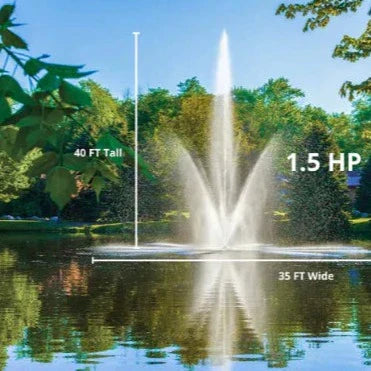

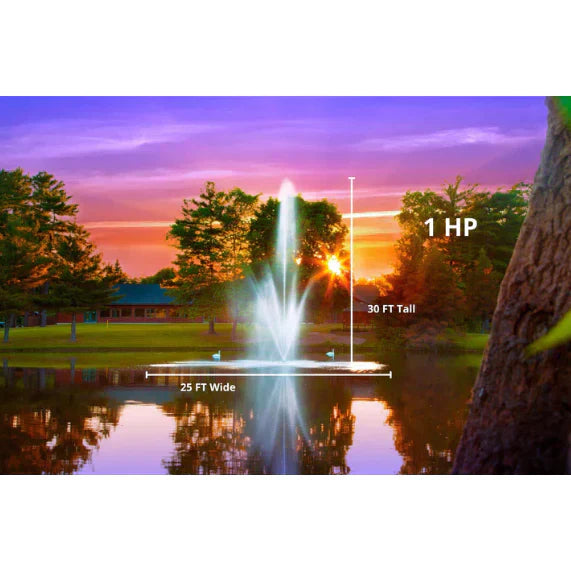

The horsepower of your Atriarch fountain directly impacts the size and intensity of the water spray. Higher horsepower models provide more significant water movement and a larger, more dramatic display.

• Horsepower determines the size and flow rate of the fountain spray. Higher HP means more water movement and a larger/denser spray.

• Selecting the right horsepower depends on your budget and the size of your pond. While personal preference plays a role, a helpful guideline is to maintain at least 10 feet between the edge of the spray and the pond's edge.

Choosing the Correct Voltage

Selecting the appropriate voltage is crucial for optimal performance and to avoid voltage drop over distance. If you are unsure, please contact us for assistance.

• If unsure about voltage, please contact us for expert guidance.

• If using 115V power at the pond's edge, be mindful of the maximum recommended distances from the pump to the breaker (including the power cord length) to prevent performance issues.

• If using 230V at the pond's edge, distance is generally not a significant concern for voltage drop.
